iPhone XR
iPhone XR
Finish
Capacity
64GB
128GB

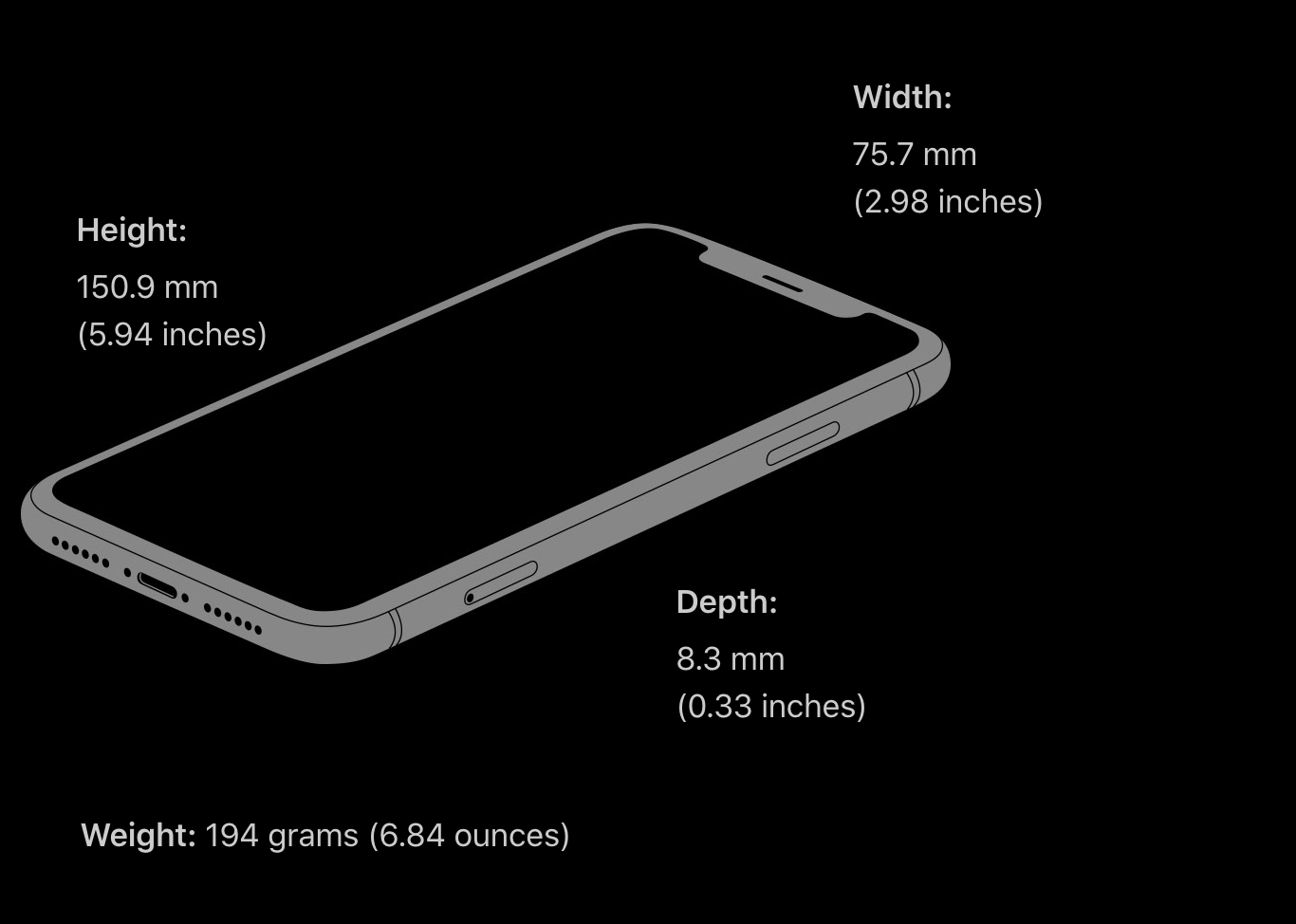

Size and Weight
Display
Liquid Retina HD display

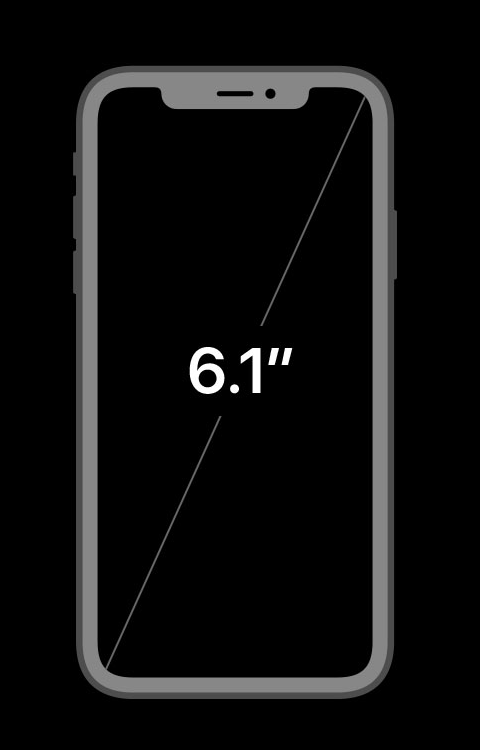

6.1-inch (diagonal) all-screen LCD Multi‑Touch display with IPS technology
1792x828-pixel resolution at 326 ppi
1400:1 contrast ratio (typical)
True Tone display
Wide colour display (P3)
625 nits max brightness (typical)
Fingerprint-resistant oleophobic coating
Support for display of multiple languages and characters simultaneously
The iPhone XR display has rounded corners that follow a beautiful curved design, and these corners are within a standard rectangle. When measured as a standard rectangular shape, the screen is 6.06 inches diagonally (actual viewable area is less).
Splash, Water and Dust Resistant
Rated IP67 (maximum depth of 1 metre up to 30 minutes) under IEC standard 60529
Chip
A12 Bionic chip
Second-generation Neural Engine
Camera
12MP Wide camera
ƒ/1.8 aperture
Digital zoom up to 5x
Portrait mode with advanced bokeh and Depth Control
Portrait Lighting with three effects (Natural, Studio, Contour)
Optical image stabilisation
Six-element lens
LED True Tone flash with slow sync
Panorama (up to 63MP)
Autofocus with Focus Pixels
Smart HDR for photos
Wide colour capture for photos and Live Photos
Advanced red-eye correction
Auto image stabilisation
Burst mode
Photo geotagging
Image formats captured: HEIF and JPEG
Video Recording
4K video recording at 24 fps, 30 fps or 60 fps
1080p HD video recording at 30 fps or 60 fps
720p HD video recording at 30 fps
Extended dynamic range for video up to 30 fps
Optical image stabilisation for video
Digital zoom up to 3x
LED True Tone flash
Slo-mo video support for 1080p at 120 fps or 240 fps
Time-lapse video with stabilisation
Cinematic video stabilisation (1080p and 720p)
Continuous autofocus video
Take 8MP still photos while recording 4K video
Playback zoom
Video formats recorded: HEVC and H.264
Stereo recording
TrueDepth Camera
7MP camera
ƒ/2.2 aperture
Portrait mode with advanced bokeh and Depth Control
Portrait Lighting with six effects (Natural, Studio, Contour, Stage, Stage Mono, High-Key Light Mono)
Animoji and Memoji
1080p HD video recording at 30 fps or 60 fps
Smart HDR for photos
Extended dynamic range for video at 30 fps
Cinematic video stabilisation (1080p and 720p)
Wide colour capture for photos and Live Photos
Retina Flash
Auto image stabilisation
Burst mode
Face ID
Enabled by TrueDepth camera for facial recognition
Mobile and Wireless
Model A2105*
FDD‑LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66)
TD‑LTE (Bands 34, 38, 39, 40, 41)
UMTS/HSPA+/DC-HSDPA (850, 900, 1700/2100, 1900, 2100 MHz)
GSM/EDGE (850, 900, 1800, 1900 MHz)
All models
4G LTE Advanced4
802.11ac Wi‑Fi with 2x2 MIMO
Bluetooth 5.0 wireless technology
NFC with reader mode
Express Cards with power reserve
Location
Built-in GPS/GNSS*
Digital compass
Wi‑Fi
Mobile data
iBeacon micro-location
Video Calling
FaceTime video calling over Wi‑Fi or a mobile network
Audio Calling
FaceTime audio
Voice over LTE (VoLTE)
Wi‑Fi calling
Audio Playback
Audio formats supported: AAC‑LC, HE‑AAC, HE‑AAC v2, Protected AAC, MP3, Linear PCM, Apple Lossless, FLAC, Dolby Digital (AC‑3), Dolby Digital Plus (E‑AC‑3) and Audible (formats 2, 3, 4, Audible Enhanced Audio, AAX and AAX+)
Wider stereo playback
User-configurable maximum volume limit
Video Playback
Video formats supported: HEVC, H.264, MPEG‑4 Part 2 and Motion JPEG
Supports Dolby Vision and HDR10 content
AirPlay Mirroring, photos and video out to Apple TV (2nd generation or later)
Video mirroring and video out support: up to 1080p through Lightning Digital AV Adapter and Lightning to VGA Adapter (adapters sold separately)
Siri
Use your voice to send messages, set reminders and more
Get intelligent suggestions on your Lock screen and in Messages, Mail, QuickType and more
Activate hands‑free with only your voice using “Hey Siri”
Use your voice to run shortcuts from your favourite apps
Power and Battery
Lasts up to 1.5 hours longer than iPhone 8 Plus
Talk time (wireless):
Up to 25 hours
Internet use:
Up to 15 hours
Video playback (wireless):
Up to 16 hours
Audio playback (wireless):
Up to 65 hours
Fast‑charge capable:
Up to 50% charge in 30 minutes9
with 18W adapter or higher (sold separately)
Built-in rechargeable lithium‑ion battery
Wireless charging (works with Qi chargers10)
Charging via USB to computer system or power adapter
Sensors
Face ID
Barometer
Three‑axis gyro
Accelerometer
Proximity sensor
Ambient light sensor
Headphones
EarPods with Lightning Connector
SIM Card
Dual SIM (nano-SIM and eSIM)11
iPhone XR is not compatible with existing micro-SIM cards.

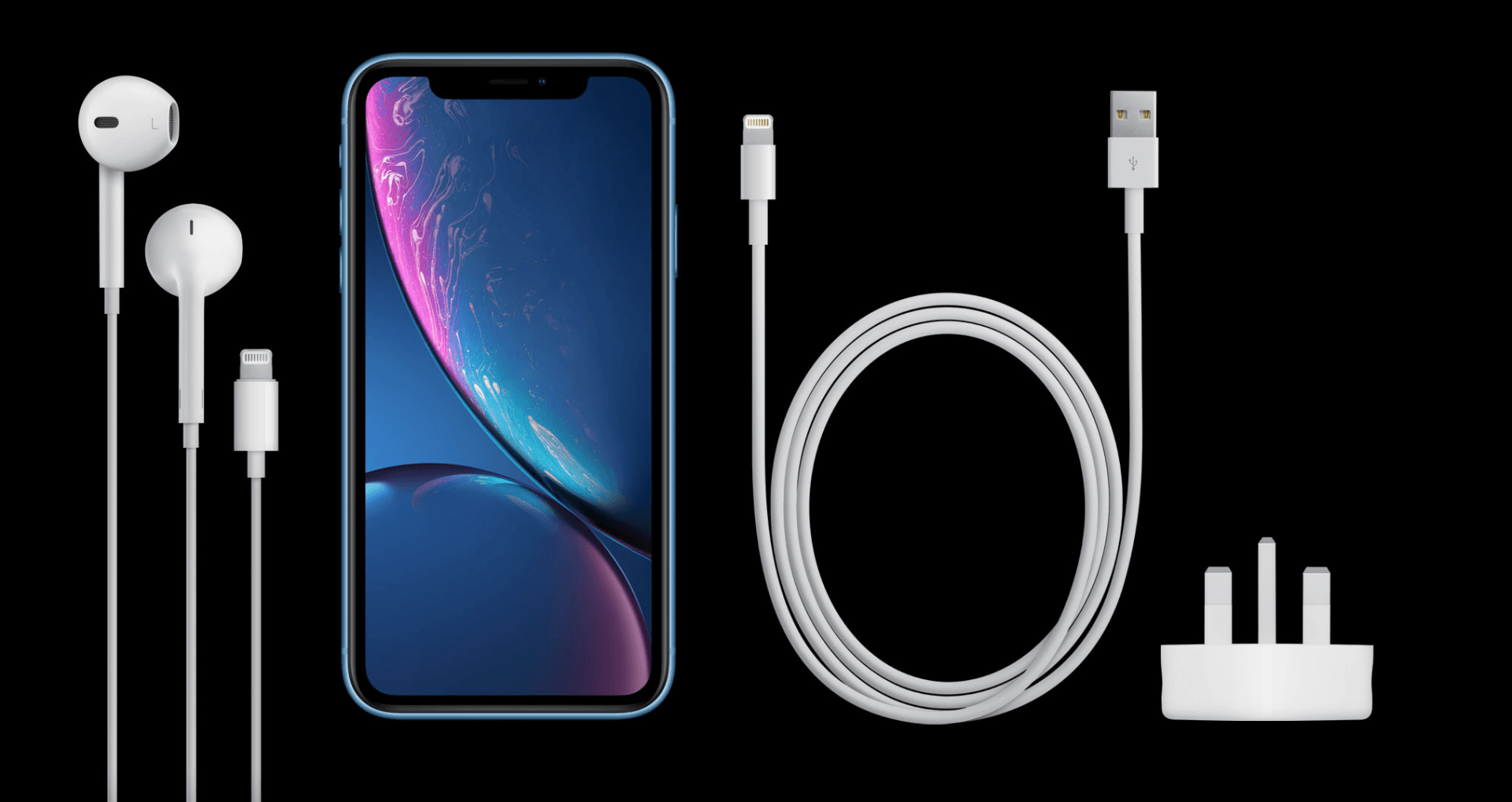

In the Box
iPhone with iOS 13
EarPods with Lightning Connector
Lightning to USB Cable
USB Power Adapter
Documentation
